EYS in-vessel composters

Untitled2

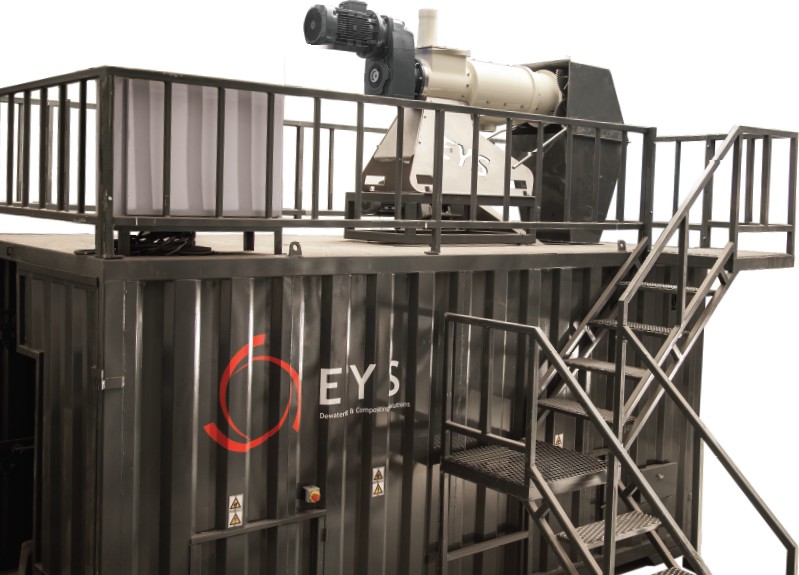

Our bedding composter (BC) is a state-of-the-art composting drum that speeds up the aerobic fermentation process significantly. It does so by creating the ideal environment for the aerobic bacteria to populate and mineralize the organic compound. All we do, is help the naturally-existing bacteria do their work - only FASTER!

The BC series composter system consists of a special HD (Heavy-Duty) separator that dewaters the solids down to a specific moisture level. The separated solids are then automatically fed into the special polymeric drum, where they are retained for 24-72 hours. During this period, the system's computerized control unit adjusts the temperature, the moisture and the oxygen levels inside the drum automatically. Composting parameters can be monitored and adjusted through the touch-screen control unit with ease, even over the internet via your smartphone.

No heat is supplied into the system for the fermentation process. The solids self heat tp 70¤C+ as a result of the exothermic aerobic fermentation, complying with the EU Hygenization requirements.

Benefits

Temperature treated material
Temperature treated material

Low bacteria count

Optimum aerobic fermentation control
Optimum aerobic fermentation control

The aerobic fermentation process under automatic control of air temperature, air flow, mixing.

Gaz flow control for further treatment
Gaz flow control for further treatment

All gazes during the process are controlled by aspiration which can be driven to further gaz treatment.

Documented temperature records
Documented temperature records

All temperature during the process are recorded for fermentation process tracking.

Clean animals
Clean animals

Well maintained animals, easy operation on milking robot farms.

On farm available bedding material
On farm available bedding material

Forget about straw baling, transport, storage, unbaling, ... the bedding materail you need is already on site.

Highly comfortable bedding material
Highly comfortable bedding material

Cow comfort and animal welfare in the center of the production focus. Lying time a major parameter of milk production yields.

Testimonials

EYS Hygienization-Composter at Veenhuis NL
EYS Hygienization-Composter BC50

Process overview

Biobedding process
Biobedding process

Installation options

Buffer tank separator supply
Buffer tank separator supply
Direct VFD controlled separator supply
Direct VFD controlled separator supply
F connection separator supply
F connection separator supply
